Jupyter MCP

Jupyter MCP Server (opens in a new tab) enables real-time interaction with Jupyter notebooks, allowing AI models to edit, execute, and document code for data analysis and visualization. Instead of just generating code suggestions, AI can actually run Python code and see the results.

This integration gives Jan the ability to execute analysis, create visualizations, and iterate based on actual results - turning your AI assistant into a capable data science partner.

Breaking Change: Version 0.11.0+ renamed room to document. Check the release notes (opens in a new tab) for details.

Available Tools

The Jupyter MCP Server provides 12 comprehensive tools (opens in a new tab):

Core Operations

append_execute_code_cell: Add and run code cells at notebook end
insert_execute_code_cell: Insert and run code at specific positions
execute_cell_simple_timeout: Execute cells with timeout control
execute_cell_streaming: Long-running cells with progress updates
execute_cell_with_progress: Execute with timeout and monitoring

Cell Management

append_markdown_cell: Add documentation cells
insert_markdown_cell: Insert markdown at specific positions
delete_cell: Remove cells from notebook
overwrite_cell_source: Update existing cell content

Information & Reading

get_notebook_info: Retrieve notebook metadata
read_cell: Examine specific cell content
read_all_cells: Get complete notebook state

⚠️

The MCP connects to one notebook at a time, not multiple notebooks. Specify your target notebook in the configuration.

Prerequisites

Jan with MCP enabled
Python 3.8+ with uv package manager
Docker installed
OpenAI API key for GPT-5 access
Basic understanding of Jupyter notebooks

Setup

Enable MCP

Go to Settings > MCP Servers
Toggle Allow All MCP Tool Permission ON

MCP settings page with toggle enabled

Install uv Package Manager

If you don't have uv installed:


# macOS and Linux
curl -LsSf https://astral.sh/uv/install.sh | sh
# Windows
powershell -c "irm https://astral.sh/uv/install.ps1 | iex"

Create Python Environment

Set up an isolated environment for Jupyter:


# Create environment with Python 3.13
uv venv .venv --python 3.13
# Activate environment
source .venv/bin/activate  # Linux/macOS
# or
.venv\Scripts\activate     # Windows
# Install Jupyter dependencies
uv pip install jupyterlab==4.4.1 jupyter-collaboration==4.0.2 ipykernel
uv pip uninstall pycrdt datalayer_pycrdt
uv pip install datalayer_pycrdt==0.12.17
# Add data science libraries
uv pip install pandas numpy matplotlib altair

Start JupyterLab Server

Launch JupyterLab with authentication:


jupyter lab --port 8888 --IdentityProvider.token heyheyyou --ip 0.0.0.0

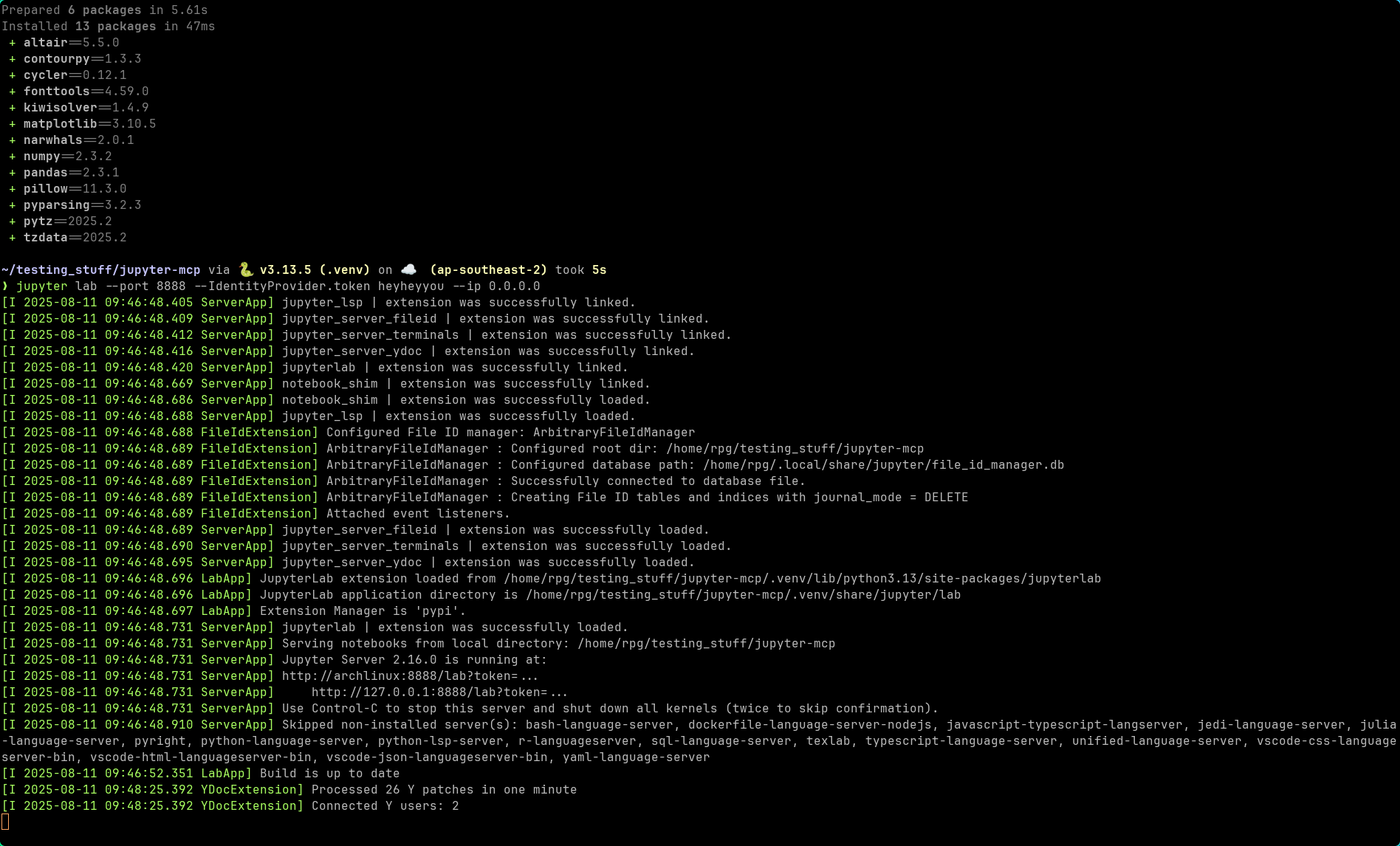

Terminal showing JupyterLab startup

The server opens in your browser:

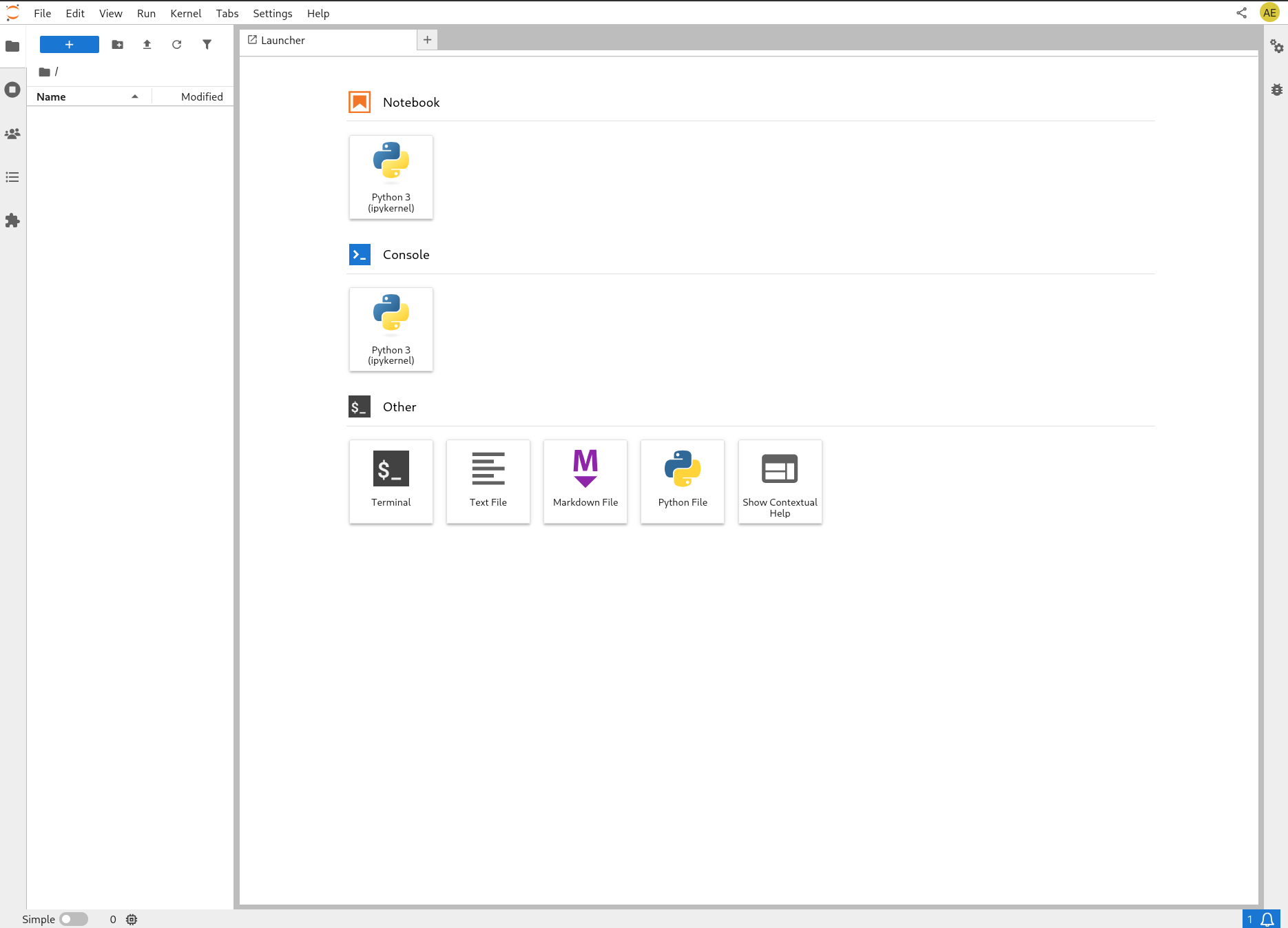

JupyterLab interface in browser

Create Target Notebook

Create a new notebook named for_jan.ipynb:

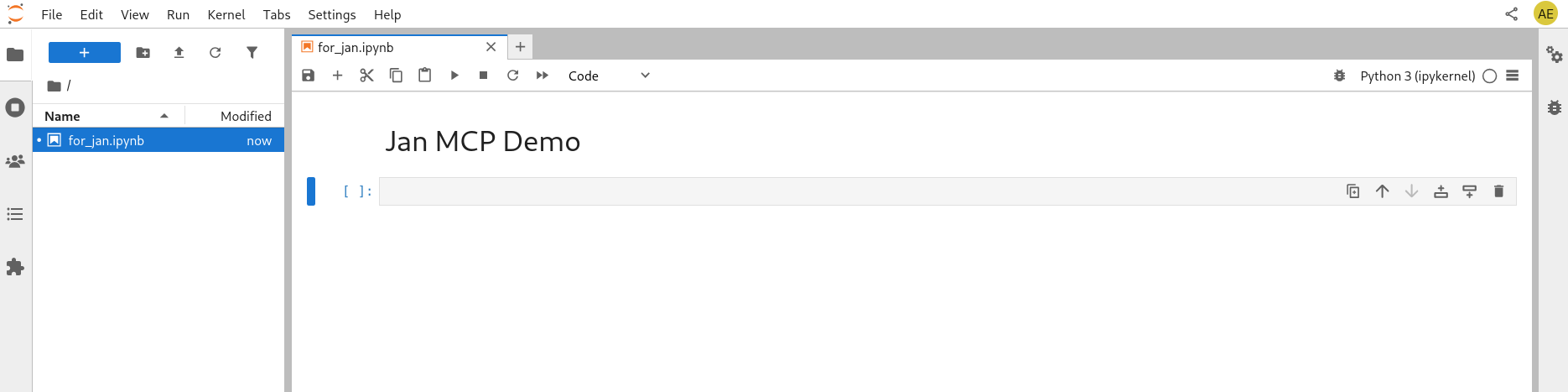

Notebook created in JupyterLab

Configure MCP Server in Jan

Click + in MCP Servers section:

Configuration for macOS/Windows:

Server Name: jupyter
Command: docker
Arguments:
run -i --rm -e DOCUMENT_URL -e DOCUMENT_TOKEN -e DOCUMENT_ID -e RUNTIME_URL -e RUNTIME_TOKEN datalayer/jupyter-mcp-server:latest
Environment Variables:
- Key: DOCUMENT_URL, Value: http://host.docker.internal:8888
- Key: DOCUMENT_TOKEN, Value: heyheyyou
- Key: DOCUMENT_ID, Value: for_jan.ipynb
- Key: RUNTIME_URL, Value: http://host.docker.internal:8888
- Key: RUNTIME_TOKEN, Value: heyheyyou

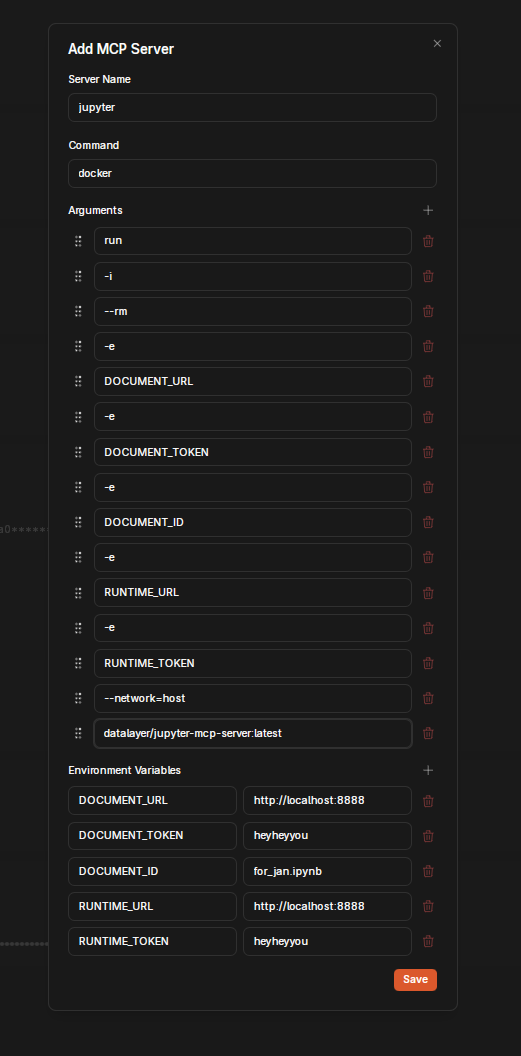

Jan MCP server configuration

Using OpenAI's GPT-5

Configure OpenAI Provider

Navigate to Settings > Model Providers > OpenAI:

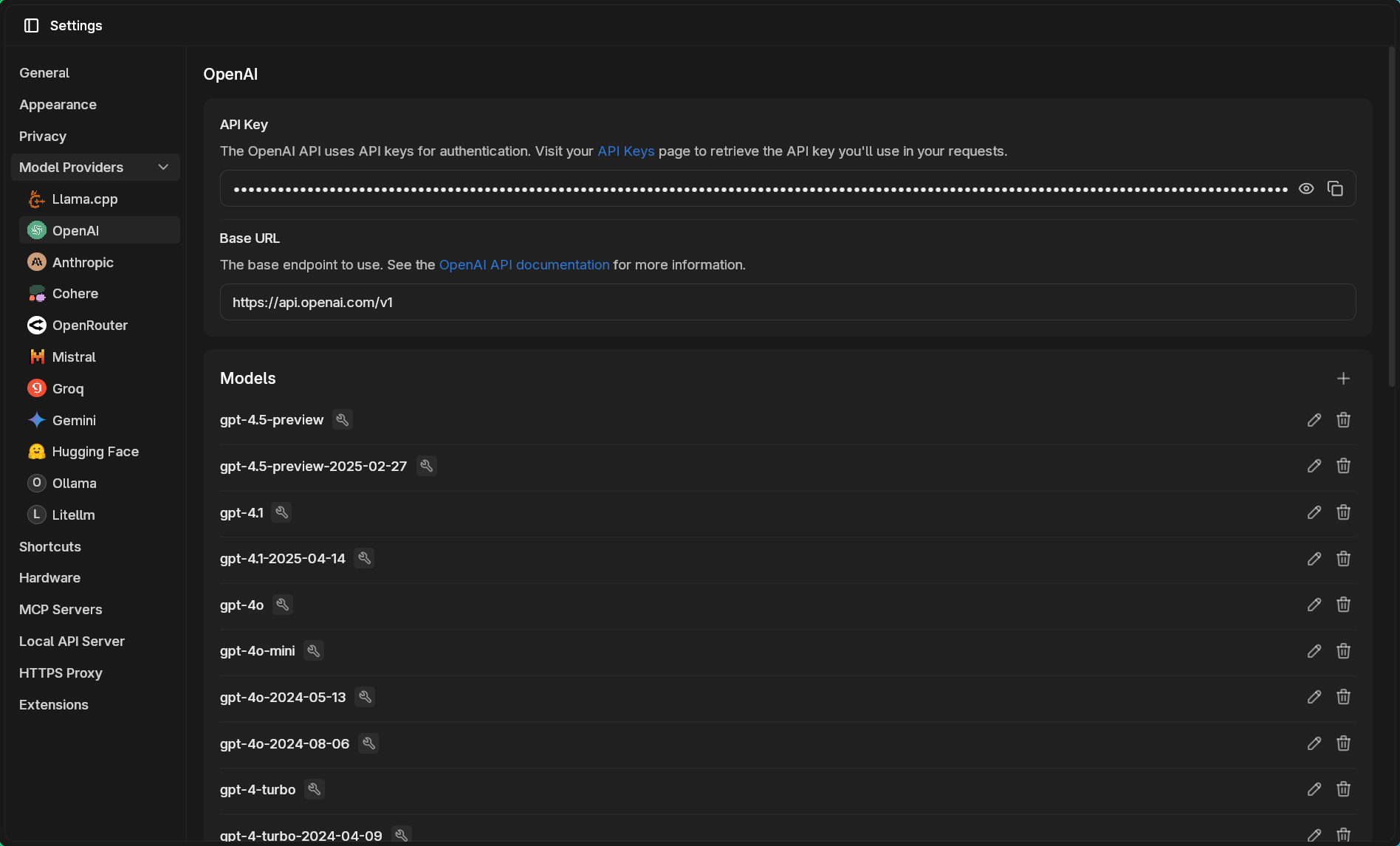

OpenAI settings page

Add GPT-5 Model

Since GPT-5 is new, you'll need to manually add it to Jan:

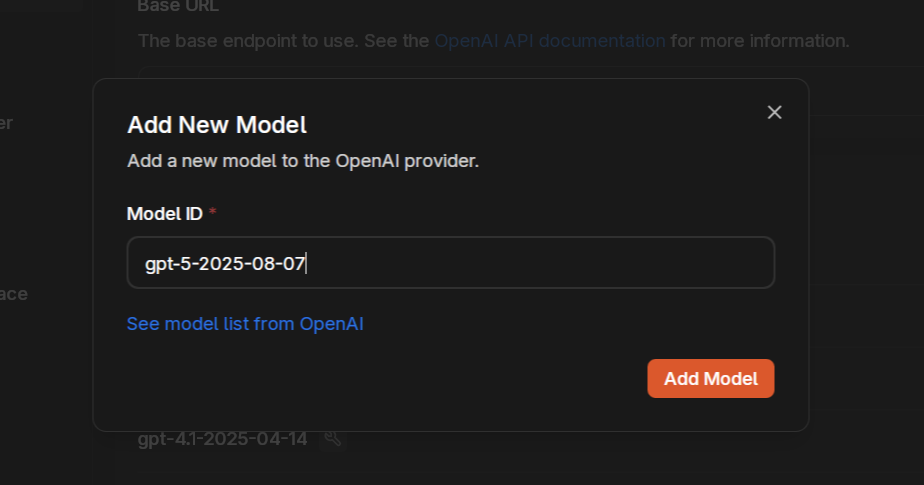

Manually adding GPT-5 model name

About GPT-5: OpenAI's smartest, fastest, most useful model yet. It features built-in thinking capabilities, state-of-the-art performance across coding, math, and writing, and exceptional tool use abilities. GPT-5 automatically decides when to respond quickly versus when to think longer for expert-level responses.

Enable Tool Calling

Ensure tools are enabled for GPT-5:

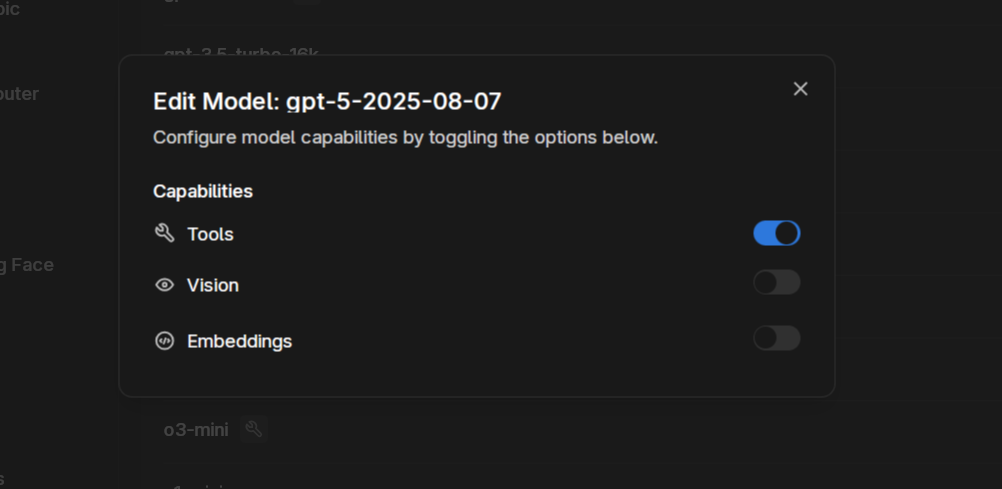

Enabling tools for GPT-5

Usage

Verify Tool Availability

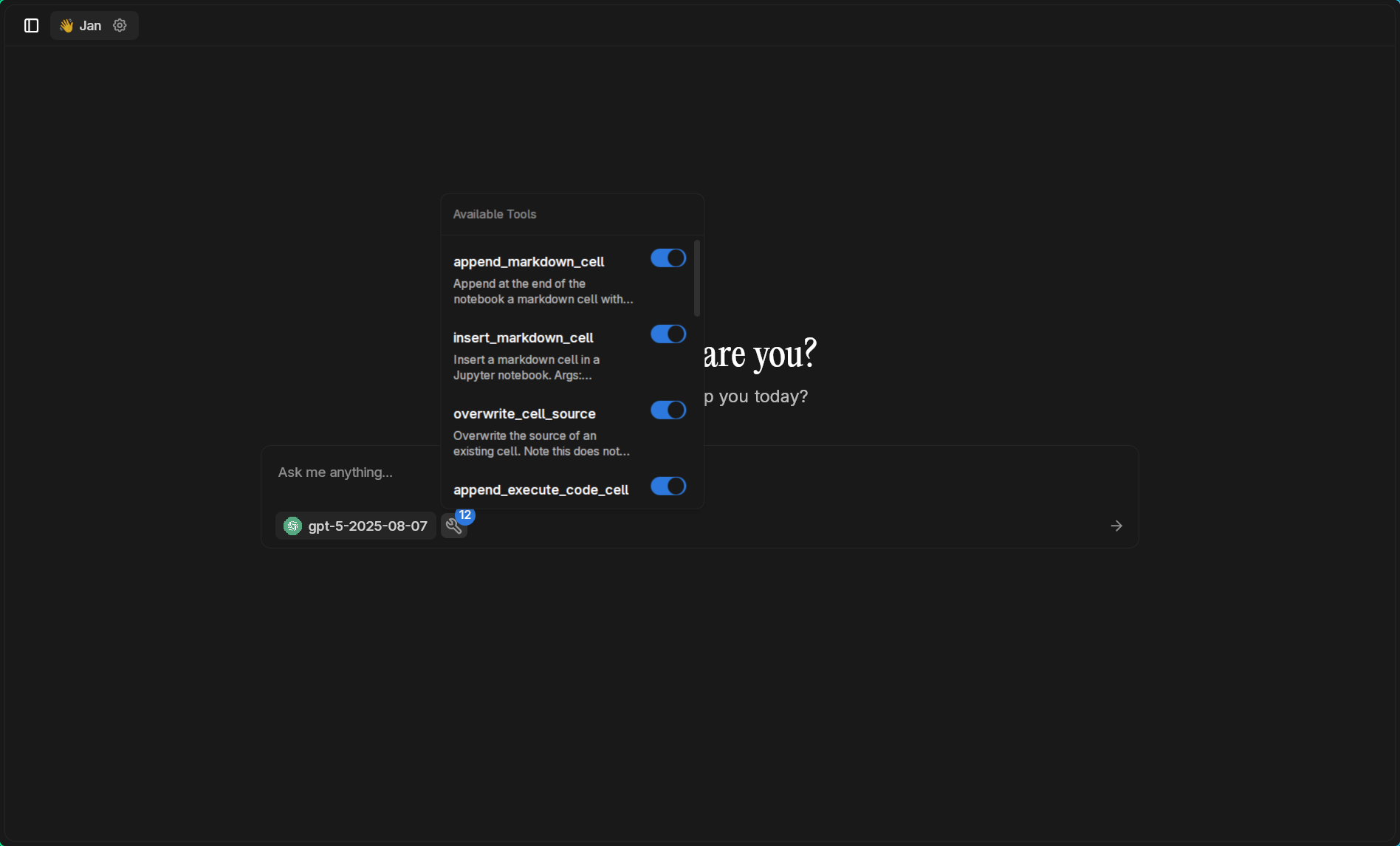

Start a new chat with GPT-5. The tools bubble shows all available Jupyter operations:

GPT-5 ready in chat with Jupyter tools visible

Initial Test

Start with establishing the notebook as your workspace:


You have access to a jupyter notebook, please use it as our data analysis scratchpad. Let's start by printing "Hello Jan" in a new cell.

GPT-5 creates and executes the code successfully:

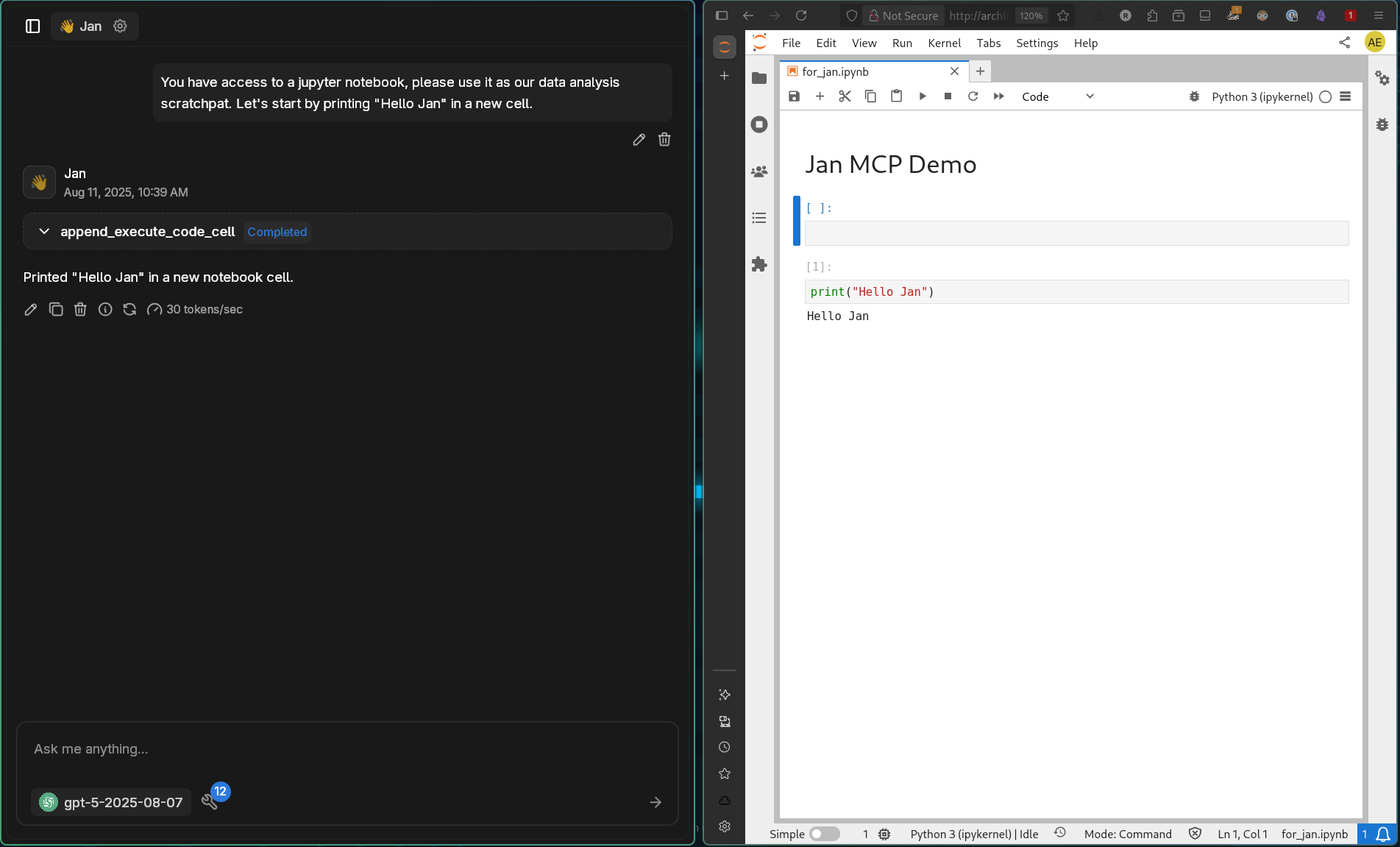

First message showing successful tool use

Advanced Data Analysis

Try a more complex task combining multiple operations:


Generate synthetic data with numpy, move it to a pandas dataframe and create a pivot table, and then make a cool animated plot using matplotlib. Your use case will be sales analysis in the luxury fashion industry.

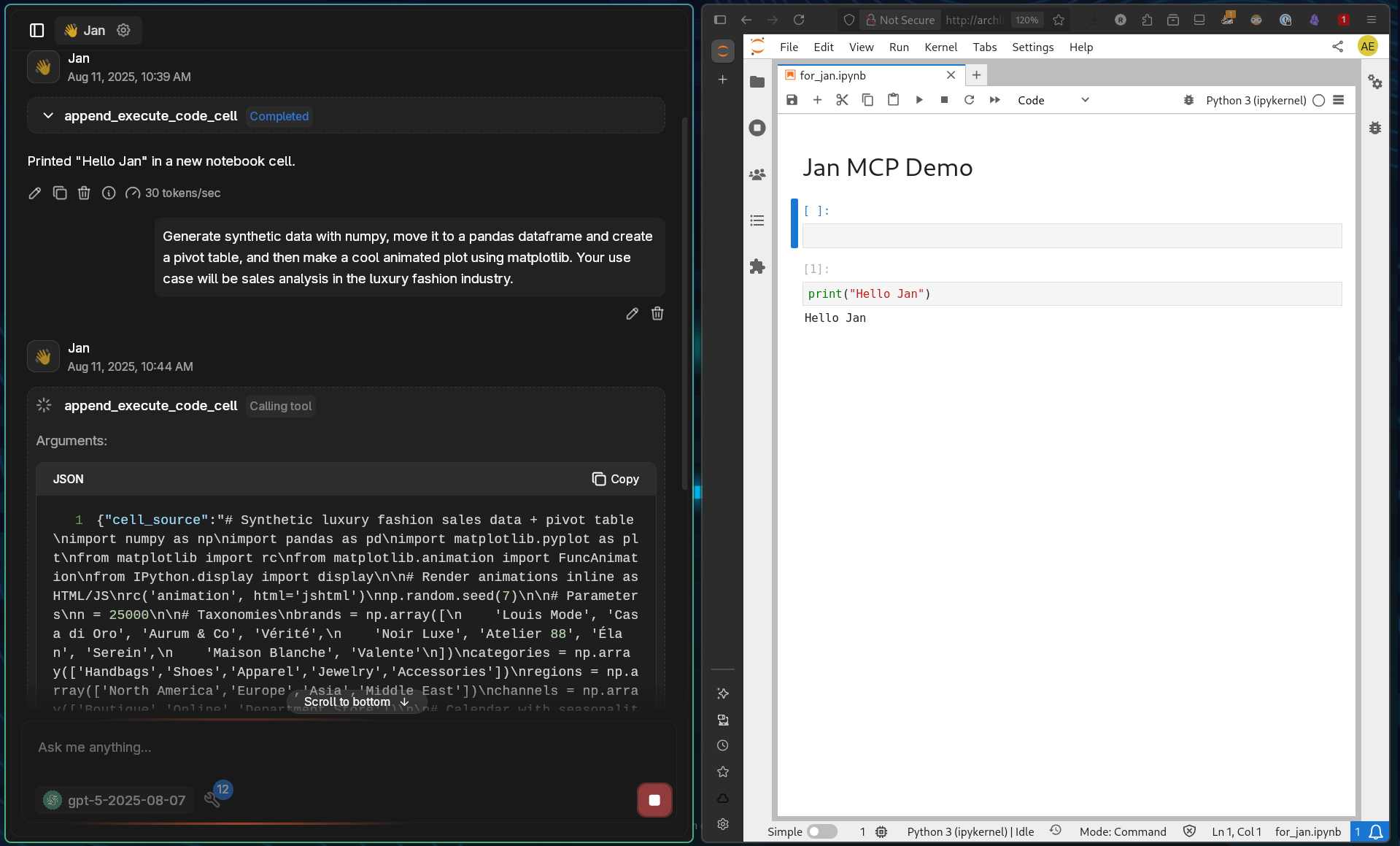

Complex analysis with luxury fashion sales data

Watch the complete output unfold:

Example Prompts to Try

Financial Analysis


Create a Monte Carlo simulation for portfolio risk analysis. Generate 10,000 scenarios, calculate VaR at 95% confidence, and visualize the distribution.

Time Series Forecasting


Generate synthetic time series data representing daily website traffic over 2 years with weekly seasonality and trend. Build an ARIMA model and forecast the next 30 days.

Machine Learning Pipeline


Build a complete classification pipeline: generate a dataset with 3 classes and 5 features, split the data, try multiple algorithms (RF, SVM, XGBoost), and create a comparison chart of their performance.

Interactive Dashboards


Create an interactive visualization using matplotlib widgets showing how changing interest rates affects loan payments over different time periods.

Statistical Testing


Generate two datasets representing A/B test results for an e-commerce site. Perform appropriate statistical tests and create visualizations to determine if the difference is significant.

Performance Considerations

⚠️

Multiple tools can quickly consume context windows, especially for local models. GPT-5's unified system with smart routing helps manage this, but local models may struggle with speed and context limitations.

Context Management

Each tool call adds to conversation history
12 available tools means substantial system prompt overhead
Local models may need reduced tool sets for reasonable performance
Consider disabling unused tools to conserve context

Cloud vs Local Trade-offs

Cloud models (GPT-5): Handle multiple tools efficiently with large context windows
Local models: May require optimization, reduced tool sets, or smaller context sizes
Hybrid approach: Use cloud for complex multi-tool workflows, local for simple tasks

Security Considerations

⚠️

MCP provides powerful capabilities but requires careful security practices.

Authentication Tokens

Always use strong tokens - avoid simple passwords
Never commit tokens to version control
Rotate tokens regularly for production use
Use different tokens for different environments

Network Security

JupyterLab is network-accessible with --ip 0.0.0.0
Consider using --ip 127.0.0.1 for local-only access
Implement firewall rules to restrict access
Use HTTPS in production environments

Code Execution Risks

AI has full Python execution capabilities
Review generated code before execution
Use isolated environments for sensitive work
Monitor resource usage and set limits

Data Privacy

Notebook content is processed by AI models
When using cloud models like GPT-5, data leaves your system
Keep sensitive data in secure environments
Consider model provider's data policies

Best Practices

Environment Management

Use virtual environments for isolation
Document required dependencies
Version control your notebooks
Regular environment cleanup

Performance Optimization

Start with simple operations
Monitor memory usage during execution
Close unused notebooks
Restart kernels when needed

Effective Prompting

Be specific about desired outputs
Break complex tasks into steps
Ask for explanations with code
Request error handling in critical operations

Troubleshooting

Connection Problems:

Verify JupyterLab is running
Check token matches configuration
Confirm Docker can reach host
Test with curl to verify connectivity

Execution Failures:

Check Python package availability
Verify kernel is running
Look for syntax errors in generated code
Restart kernel if stuck

Tool Calling Errors:

Ensure model supports tool calling
Verify all 12 tools appear in chat
Check MCP server is active
Review Docker logs for errors

API Rate Limits:

Monitor OpenAI usage dashboard
Implement retry logic for transient errors
Consider fallback to local models
Cache results when possible

Conclusion

The Jupyter MCP integration combined with GPT-5's advanced capabilities creates an exceptionally powerful data science environment. With GPT-5's built-in reasoning and expert-level intelligence, complex analyses that once required extensive manual coding can now be accomplished through natural conversation.

Whether you're exploring data, building models, or creating visualizations, this integration provides the computational power of Jupyter with the intelligence of GPT-5 - all within Jan's privacy-conscious interface.

Remember: with great computational power comes the responsibility to use it securely. Always validate generated code, use strong authentication, and be mindful of data privacy when using cloud-based models.
